DECANTER ADAPTER SET UP
Installing the Decanter Alignment Jig for Bezerat 700 ml

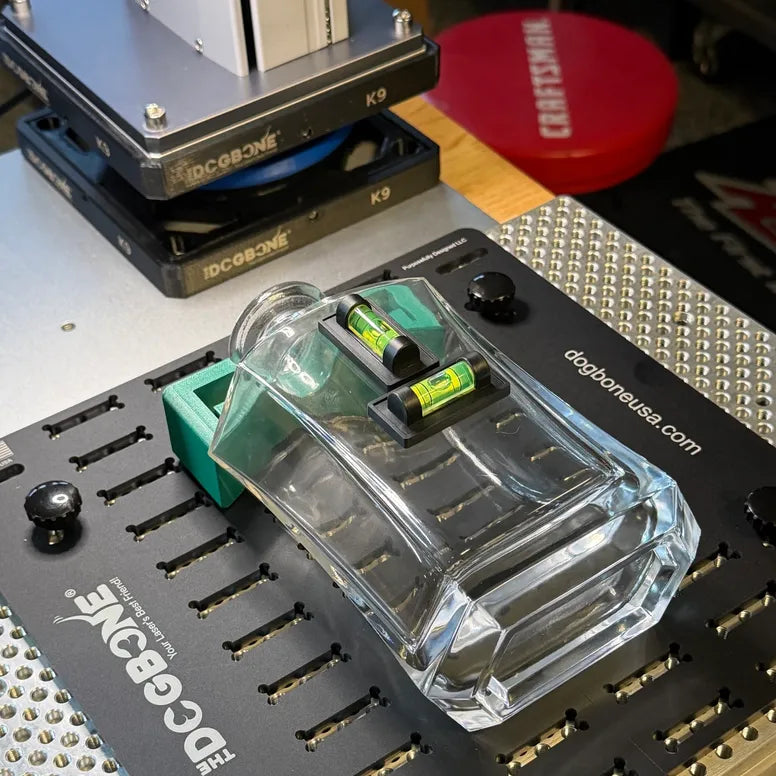

Once the Dogbone Base is aligned to your laser insert the GREEN decanter piece that works with Bezerat 710 ml decanter pictured.
Once your decanter piece is inserted in the base, attach your decanter as shown, refocus your laser, align your artwork/vector/image in your software and laser following your training/safety precautions provided by your laser manufacturer.
Installing the Decanter Alignment Jig for JDS Square Decanter (DC301S)

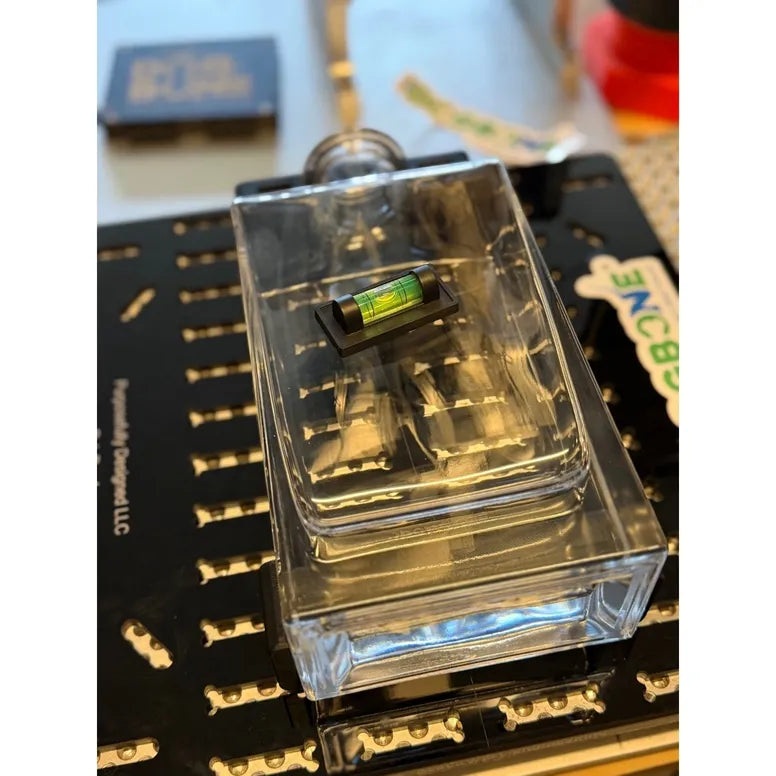

Once the Dogbone Base is aligned to your laser insert the BLUE decanter piece that works with the JDS Square 750 ml Decanter (DC301S).
Once your decanter piece is inserted in the base, attach your decanter as shown, refocus your laser, align your artwork/vector/image in your software and laser following your training/safety precautions provided by your laser manufacturer.
Installing the Decanter Alignment Jig for JDS Rectangle Decanter (DC351S)
Note: There are two (2) pieces for the the alignment set.

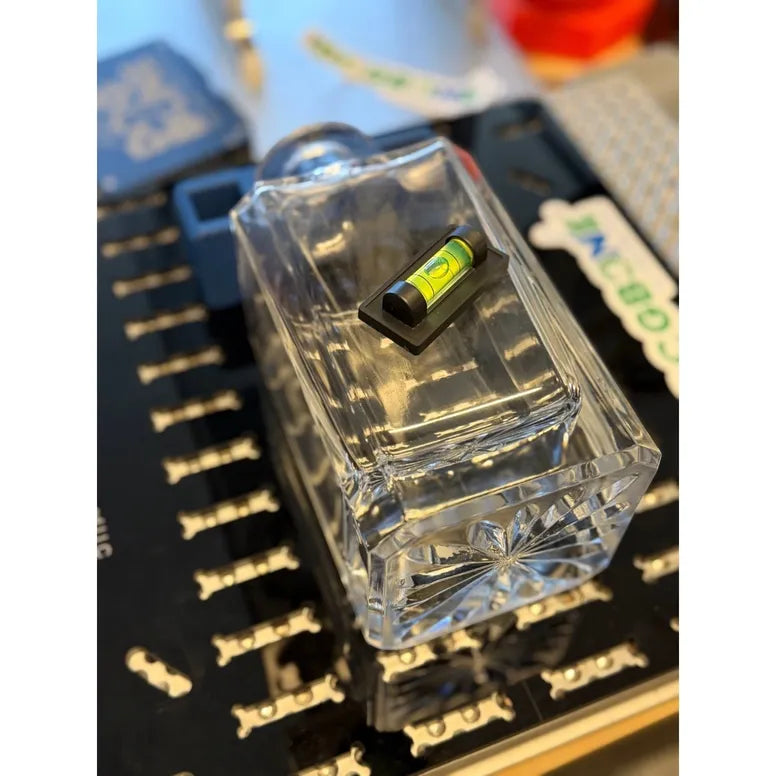

Once the Dogbone Base is aligned to your laser insert the BLACK decanter pieces that works with the JDS Rectangle 810 ml Decanter (DC351S).
Once your decanter piece is inserted in the base, attach your decanter as shown, refocus your laser, align your artwork/vector/image in your software and laser following your training/safety precautions provided by your laser manufacturer.
DECANTER SET GLASSES SET UP
Installing the Decanter Alignment Jig for Bezerat 700 ml
There are NO glasses sold as a set with this model Amazon. Based on what you choose you can use the Dogbone 3.0 Risers, the different riser inserts, the adjustable backstop, and our in/out wings to work with the glass.
SEE BELOW FOR PICTURES.
Installing the Glasses Inserts for the JDS Square Decanter Set (DCS301S) 11oz Rocks Glasses
Note: You do not have to move the Decanter Adapter to laser the glasses.

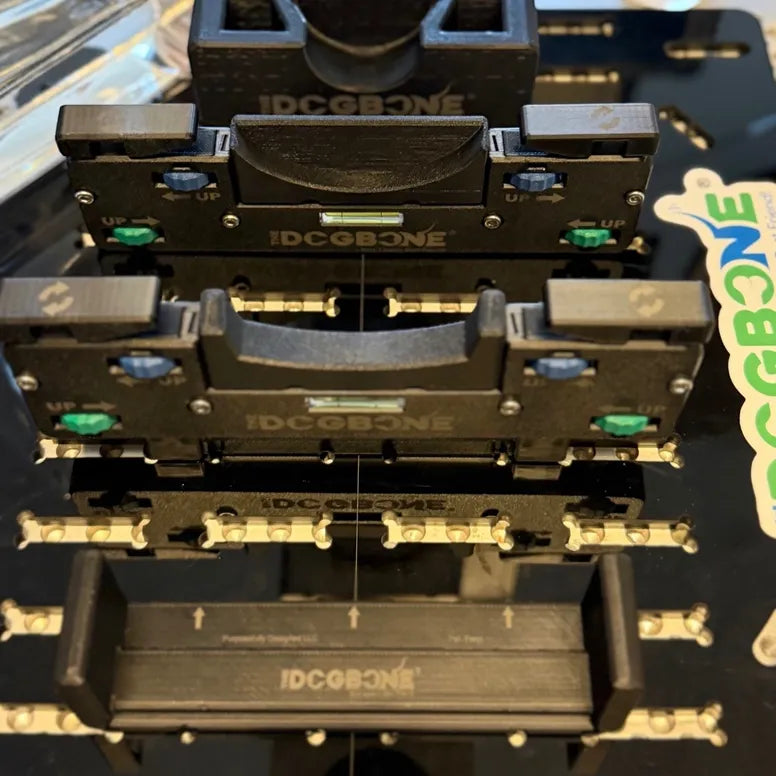

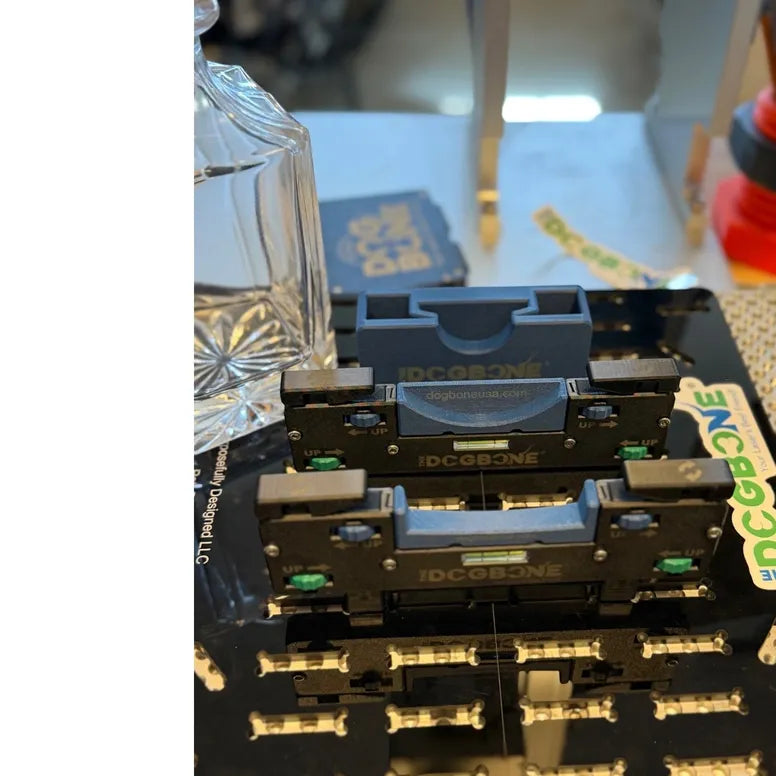

Insert your Dogbone 3.0 Risers into the Dogbone Base as shown. Insert the two (2) BLUE riser inserts as pictured above. Set your 11oz Square End Rocks Glass on the risers and level using the BLUE adjust knobs.
Once your glass is set on the risers, refocus your laser, align your artwork/vector/image in your software and laser following your training/safety precautions provided by your laser manufacturer.
Installing the Glasses Inserts for the JDS Rectangle Decanter Set (DCS351S) 8oz Rocks Glasses
Note: You do not have to move the Decanter Adapter to laser the glasses.
Insert your Dogbone 3.0 Risers into the Dogbone Base as shown. Insert the two (2) BLACK riser inserts as pictured above. Set your 11oz Square End Rocks Glass on the risers and level using the BLUE adjust knobs.
